Safety bars are not required on 18 inches and smaller parallel drainage end sections.

Flared end section grate. Flared end section with grate shall be class 2. Also known as pipe grates. For metal end sections, care should be taken to ensure the end section has an appropriate connection type per std.

Pipe • precast • molds • industrial castings • masonry & hardscape. Includes top mounting hardware and pipe joint u bolts; = cylindrical flared end sections are seamless pipe ends that taper open to the base.

Ø24 safety flared end section (spigot) h1 b h2 s x 24 max 24 max 24 max bell or spigot as specified t 1 1/2 24 max 2 2 gl. Home > pipe/fittings > rcp pipe & fittings > rcp flared end section toe blocks & grates > 15 rcp flared end section toe block & grate. Meets ga dot standard 1122 parts shown:

Please follow and like us: • 15 rcp flared end section toe block & grate. And open end of flared section is inside clear zone 3.

Don't see your sizes or finishes here? Detail of steel vane grate: • 18 rcp flared end section toe block & grate.

Safety grate to be used where roadway embankment is shallow flared end section with grate shall be class 2. End pipe spacing not to exceed 24 c/c; End sections are made from certified materials meeting aashto and astm standards and highway safety requirements.

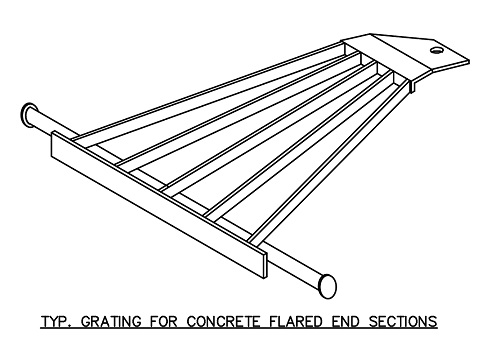

Pipe for grates shall be schedule 40, galvanized (astm a120) may be allowed provided approval is obtained from the engineer. Vehicle safety grates are designed to fit concrete flared end sections. Flared end culvert section grates.

Plan 732.00 that is tight. Steel flared end section is not included with the guard. Double area inlet open 4 sides brick construction:

Details of inlet frame and grates: Flared end section without grate shall be class 1, hardware shall be galvanized according to specifications. Flared end section temporary haybale(s), length as required to contain surface drainage and direct flow into flared end section note:

Constructed of 3 sch 40 pipe; When jointing a metal fes to thermoplastic pipe, any connection rod or strap used should be placed behind at least one full corrugation. Slight variations from the above.

Safety flared end sections 3.8 materials: Force main cleanout (6′ diameter & smaller) 72: • 12 rcp flared end section toe block & grate.

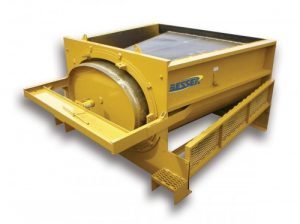

Efficient, effective besser wet cast horizontal flared end form sets are available in diameters 12” (300 mm) and larger to produce round, elliptical and arch flared end sections. Safety and longitudinal bars are not required on 30 inches and smaller cross drainage end sections. Steel trash guards, also known as child protection grates, are designed to fit onto a standard flared end section.

Bar grate data 11 5/8 5/8 5/8 3/4 3/4 8 1/2 install bar grate on inlet ends of storm sewer system only. They are used to prevent unwanted material from entering the pipe which may result in clogging. Trash guards are designed to cover the flared end section of an inlet or outlet pipe and prevent large debris from passing through while also restricting access to the pipe system.

Cross pipe has brackets to. J&j drainage products offers the most complete selection of standard flared end sections, round or arched from 6 to 96 inches, in galvanized steel, aluminized steel and aluminum for corrugated steel, concrete and plastic pipe. Culverts aligned with stream flow and finished with contech end sections generally require no additional hydraulic controls

4,000 psi, type i/ii cement reinforcement per aashto m170, class ii rcp plus one #4 bar top and bottom, each side notes: End section and culvert accessories. No problem, we will custom manufacture for your project!

Pipe for grates shall be schedule 40, galvanized (astm a120) What our end sections have to offer: Please note form company when ordering.

Flared end section without grate shall be class 1, hardware shall be galvanized according to specifications. Grate seat for 2 grate with side intake: Improved scour and sedimentation conditions;

When required, toe plate extensions shall be the same gage as end sections. End sections can be salvaged when lengthening or relocating the culvert. Double untrapped street inlet precast concrete:

The female bell section does not count as a corrugation.
